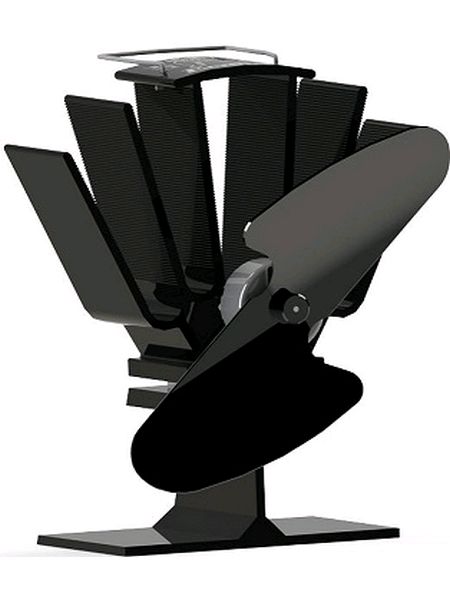

The Original Mini 815 is the smallest Ecofan with an operating height of just 165mm (6.5”) making it a suitable option for limited spaces.

The Caframo Ecofan 812 AirMax, 810 UltrAir, 800 Original and 815 Original Mini are heat powered fans designed to circulate the warm air created by a wood-stove operating with normal surface temperatures of between 85°C and 345°C. These fans do not use batteries or mains power.

Increased Efficiency: Warm air is circulated directly into the living area rather than having most of the stove’s heat rise immediately to the ceiling, thereby increasing the heating efficiency of your stove.

Software Simulation

Heat Distribution with an Ecofan

Heat Distribution without an Ecofan

Fuel Savings: Testing carried out in collaboration with a leading Canadian university has proven that using an Ecofan results in fuel savings of up to 18%. For more information click here.

‘No Fuss’ Operation: The Ecofan starts automatically and adjusts its speed with the stove temperature. As the stove heats up, the Ecofan runs faster to move more warm air into the room. As the stove burns down and cools, the Ecofan automatically shuts off.

Costs Nothing to Operate: Using the heat from the stove, the Ecofan is the most economical way to effectively circulate warm air. No cables, plugs or batteries are required.

Unique Blade Design - Safe and Efficient: The unique Ecofan blade is designed to deliver a broad cross section of gentle warm air movement to avoid uncomfortable drafts. The blade is our most efficient blade yet, moving more air at a wider range of stove temperatures. Complies with IEC 60335-2-80 safety standards.

For Optimum Performance of your Ecofan:

Placement of your Ecofan on your stove top is critical. Be sure to position the Ecofan on the stove so that cool air will be drawn over the ‘cooling fins’. The Ecofan should not be used directly in front of the stovepipe or at the front of the stove. Place the Ecofan at the back edge of the stove as shown in the diagram. Should the gap between the rear of your stove and the wall be less than 150mm (6") then move your Ecofan forward, along the side of your stove and turn it in slightly. This should ensure your fan can draw the necessary cooler air from the rear/side of your stove.
