Vision 500 flat top on 6 inch legs

Vision 500 flat top on 6 inch legs anatomy of a clearview vision 500 dimensions
Vision 500 flat top on 6 inch legs

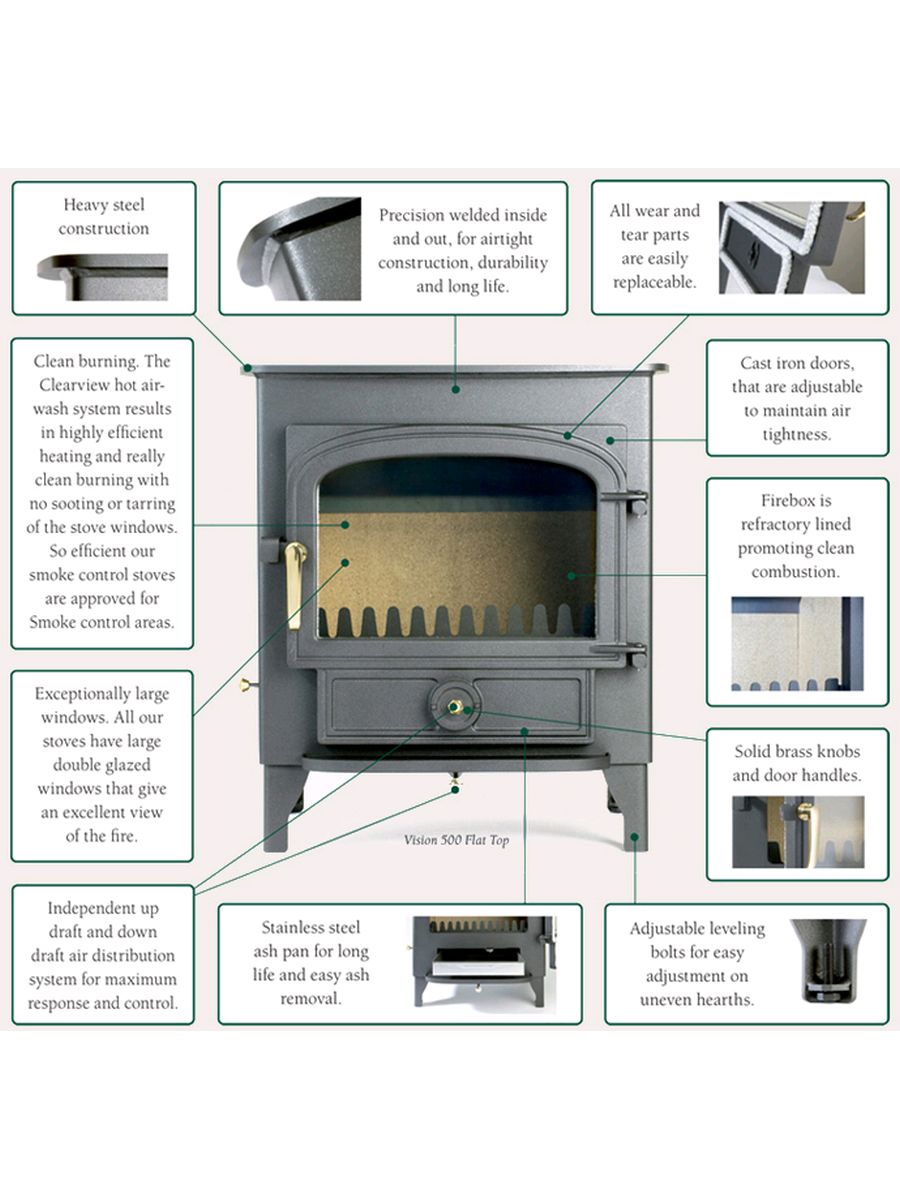

anatomy of a clearview vision 500
dimensions
Clearview Stoves

Vision 500 flat top on 6 inch legs

£1,788.00

Vision 500 flat top 6 inch

0 Reviews
Interested in purchasing, please get in touch...

clearview vision 500 flat top 8kw multifuel stove

The Clearview Vision 500 was the first multi-fuel stove approved for burning wood and authorised fuel in UK smoke control areas. Its unmistakeable classic Clearview design makes it suitable for almost every situation. It has a large single door that provides an uninterrupted view of the fire and a deep firebox taking 15" long logs with an integral multi-fuel grate.

FEATURES

  • 8kW Output.
  • One large double glazed door that gives an uninterrupted view of the flames.
  • Clearview hot air-wash system for really clean burning without fuss or pampering.
  • Independent up draft and down draft air distribution system for maximum response and control.
  • Heavy steel construction — welded inside and out for durability and long life.
  • All “wear and tear” stove parts are easily replaceable.
  • Refractory lining, promoting clean combustion.
  • Multi-fuel grate, for easy lighting and rapid response.
  • Solid brass knobs and door handles.
  • Stainless steel ash pan for long life and easy ash removal.
  • Rotary grate for easy riddling.
  • Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
  • Large hotplate surface for coffee pot, kettle and cooking. Flat top version only.
  • Takes up to 380mm (15") logs.
  • 3 yrs Manufacturers Guarantee.
Nominal Heat Output 7.3Kw
Heat Output Range 3-8Kw
Smoke Control Area Rated -
12mm Hearth Compatible YES
Defra Approved -
SIA Ecodesign -
Construction Material Hybrid (Cast Iron and Steel)
Height 640mm
Width 582mm
Depth 410mm
Weight 125kg
Flue Diameter 150mm
Flue Outlet Position Back or Top
Distance to Combustibles (Side) 450mm
Distance to Combustibles (Rear) 450mm
Log Length 380mm
Guarantee 3 years
Lead Time In Stock

We have not had any reviews for this product.
